Modular Wargaming Board Laser Files – 30cm Tile System

This download contains laser-cut files for making 30cm modular terrain tiles, designed specifically for real hobby plywood and diode laser cutters.
The connector system aligns the tiles, prevents shifting, and allows repeated setup and teardown.

This is a digital product — no physical item will be posted.
All SVG files are supplied at 96 DPI.

---

What You Receive

ZIP download containing:

• 300mm tile top panel file
• Structural frame walls and internal bracing file

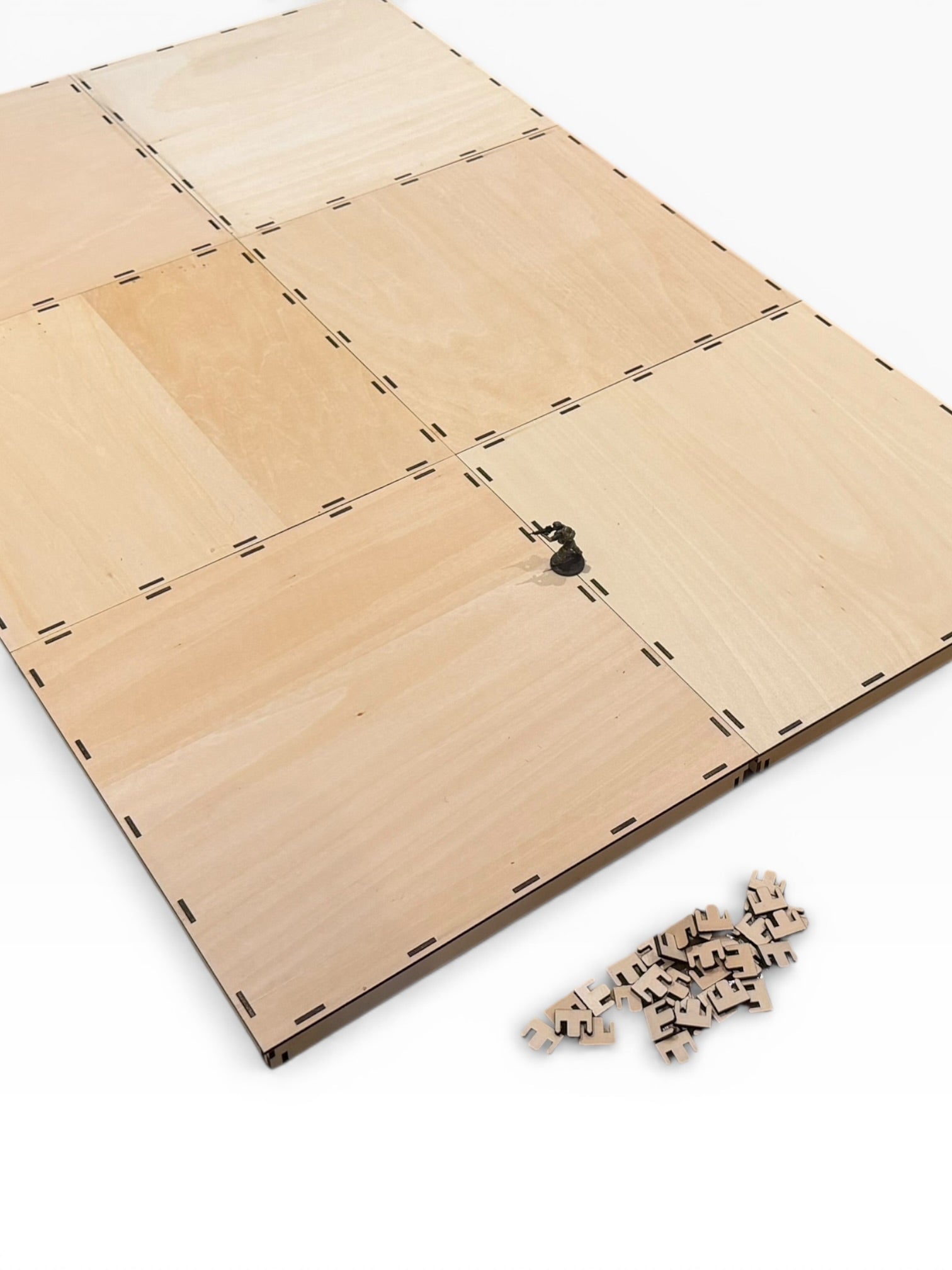

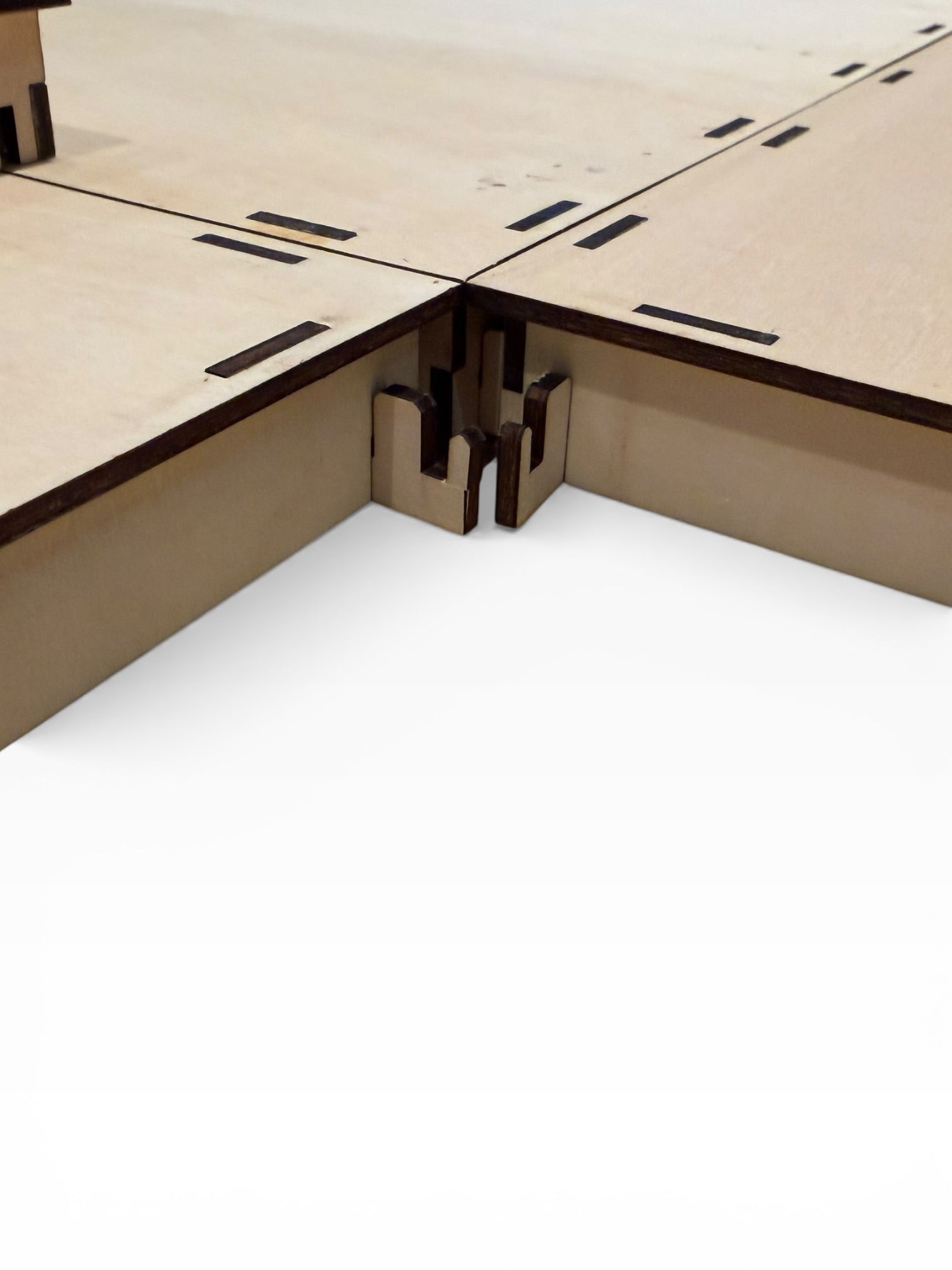

• Connector files (join tiles together)
• Versions for multiple plywood thicknesses (2.7mm–3.0mm)
• SVG files
• LightBurn-compatible files

---

Designed for Real-World Materials

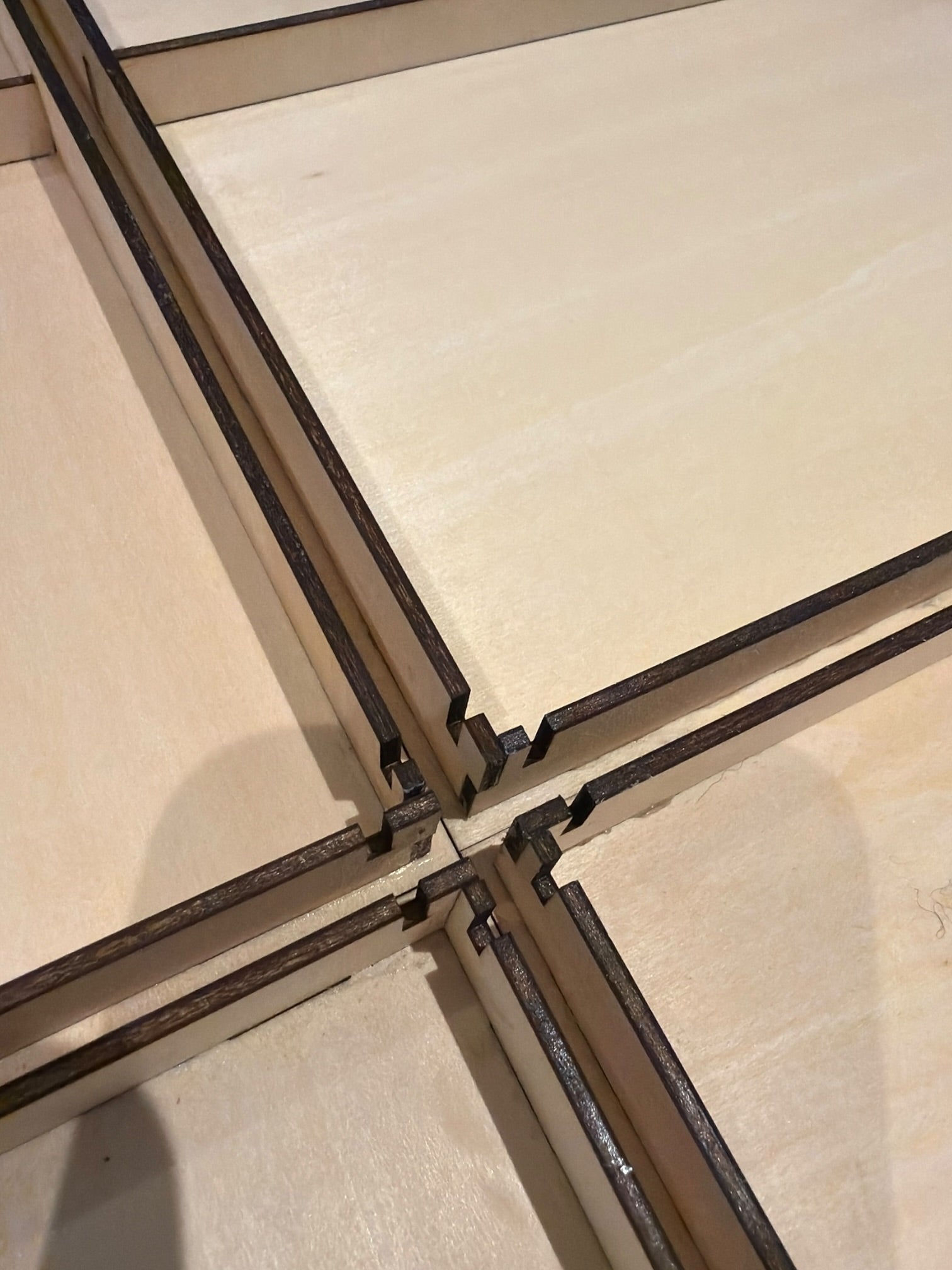

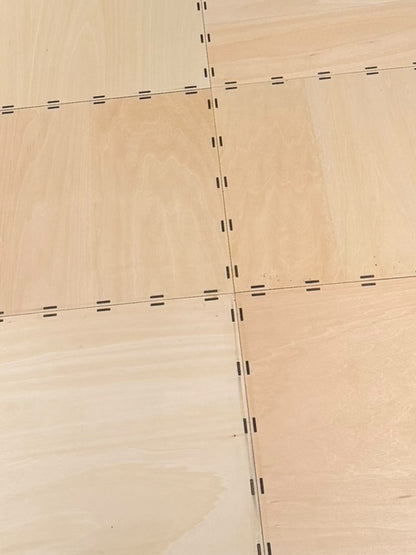

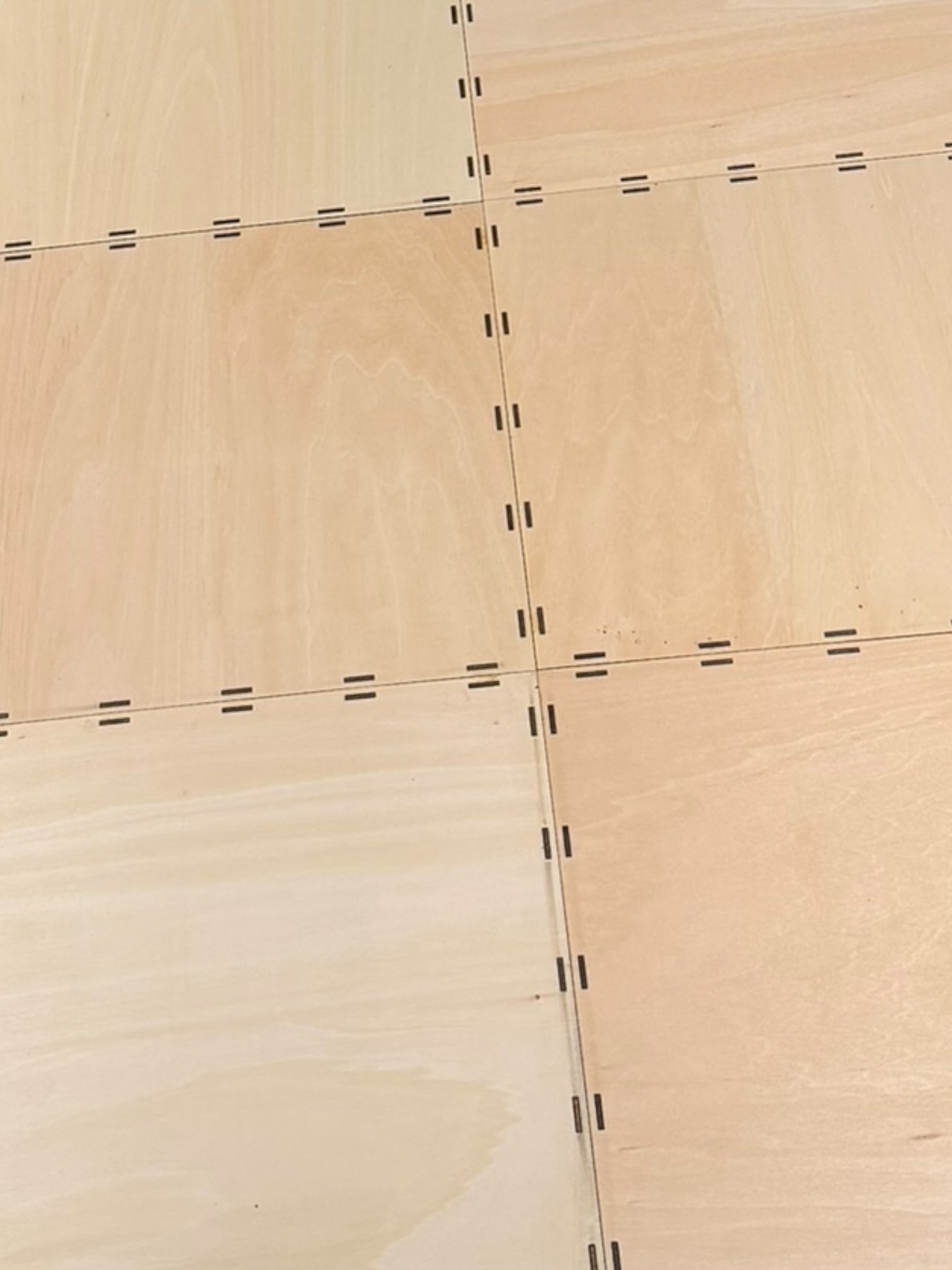

This system is designed around real hobby plywood and laser cutting tolerances so the tiles:

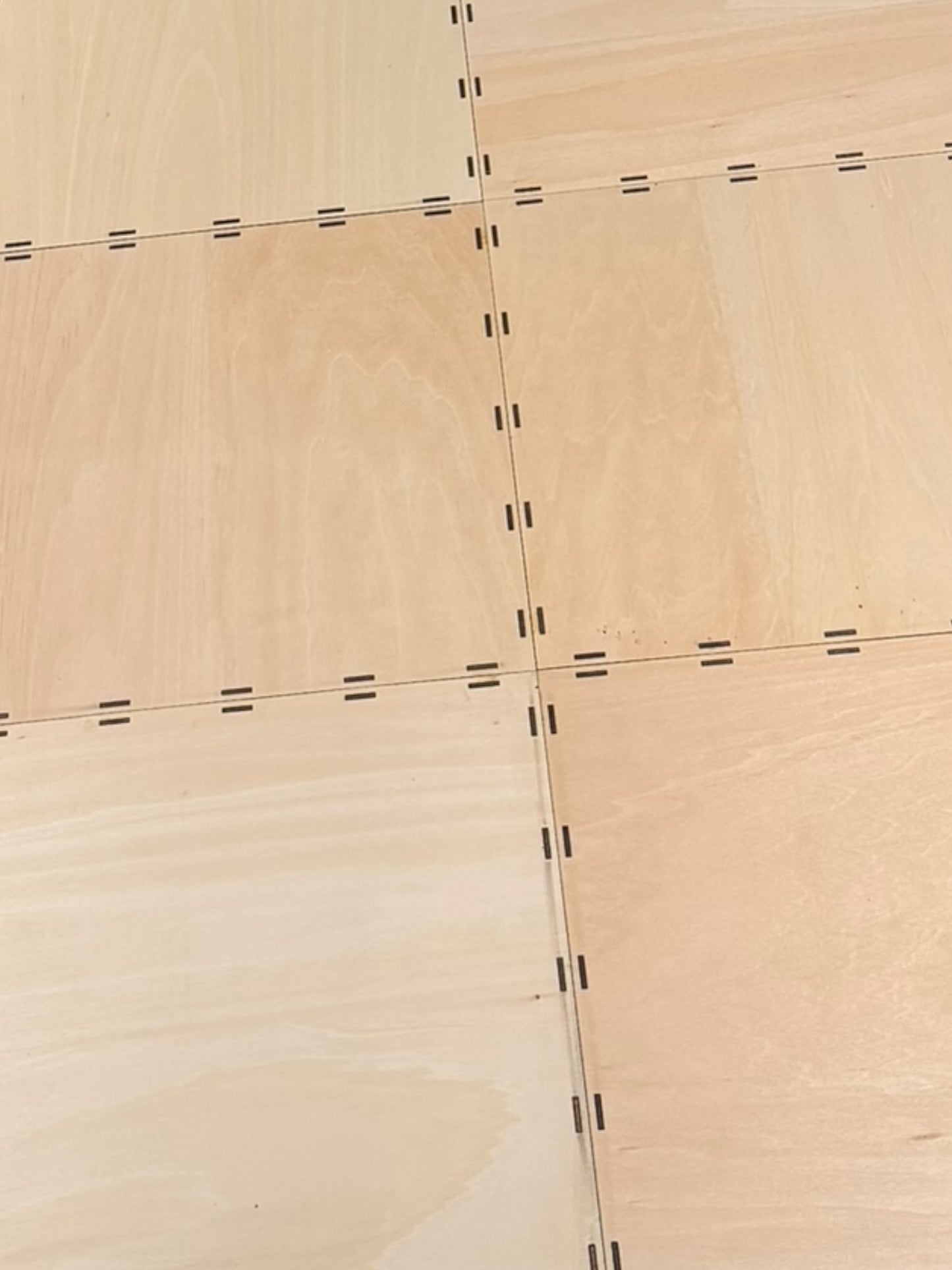

• sit flush

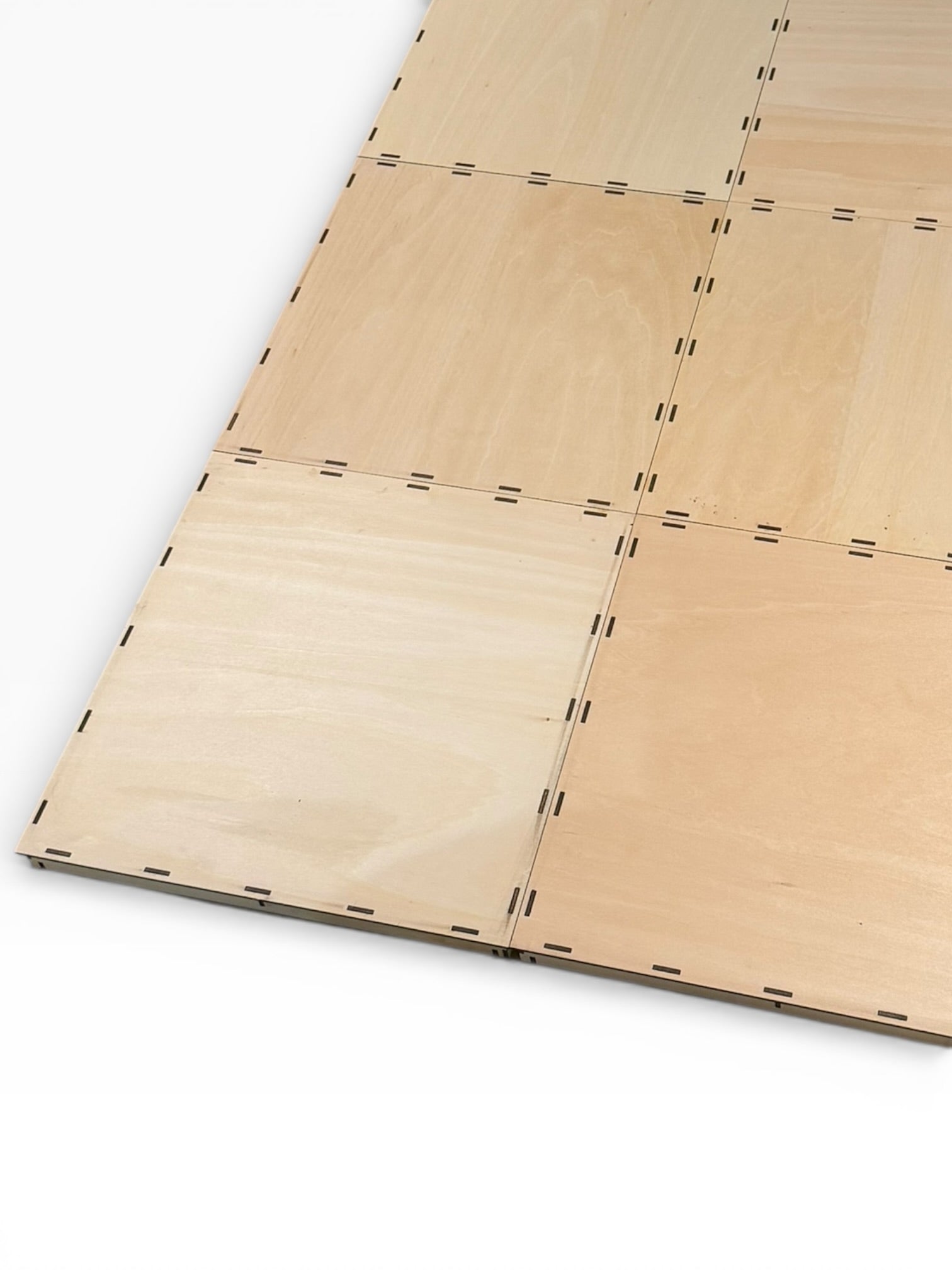

• don’t wobble
• align repeatably
• assemble and disassemble easily

No forcing or sanding required when the correct thickness version is used.

---

Tile Size & Layouts

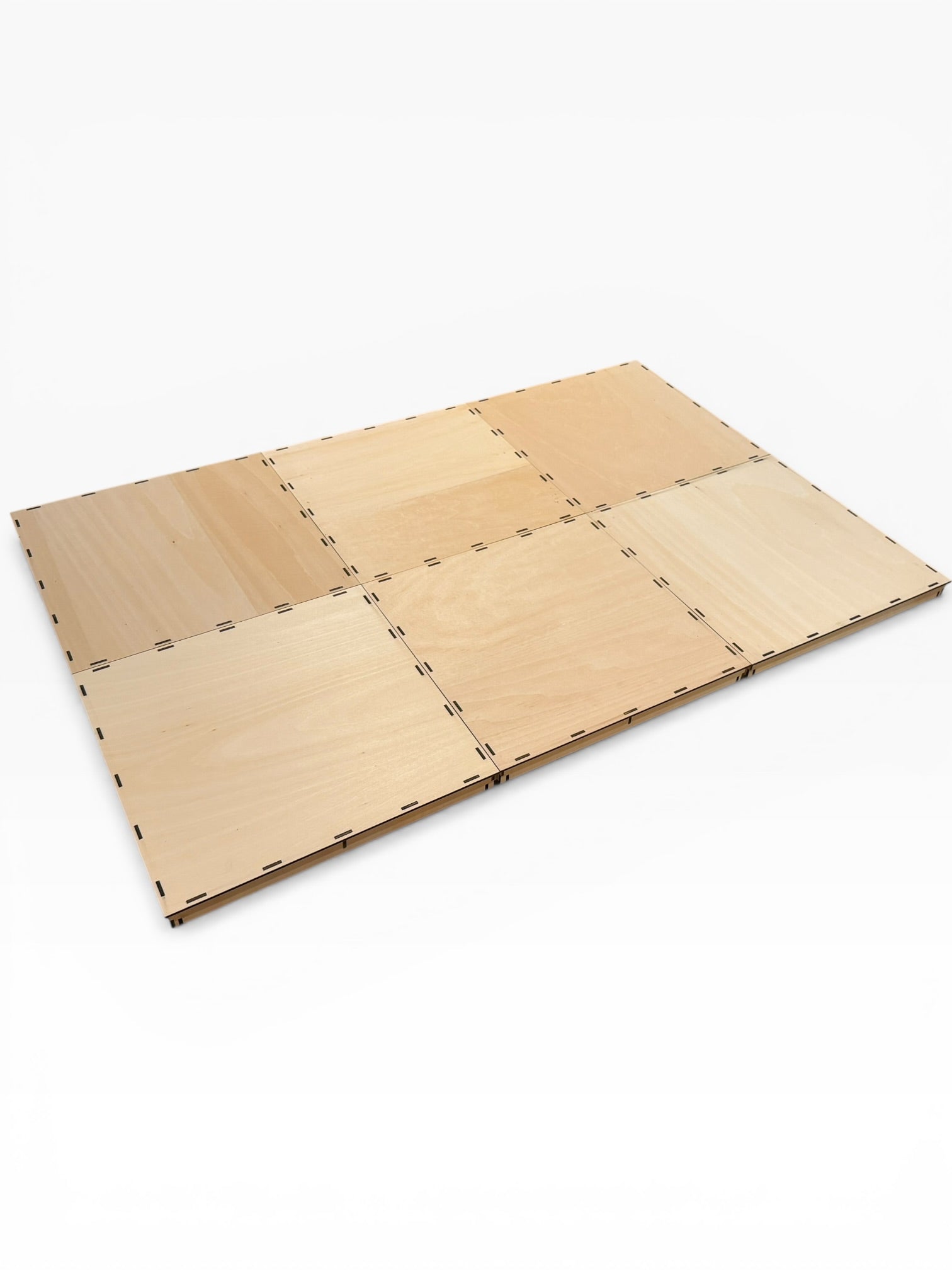

Each tile measures approximately 300mm × 300mm (30cm).

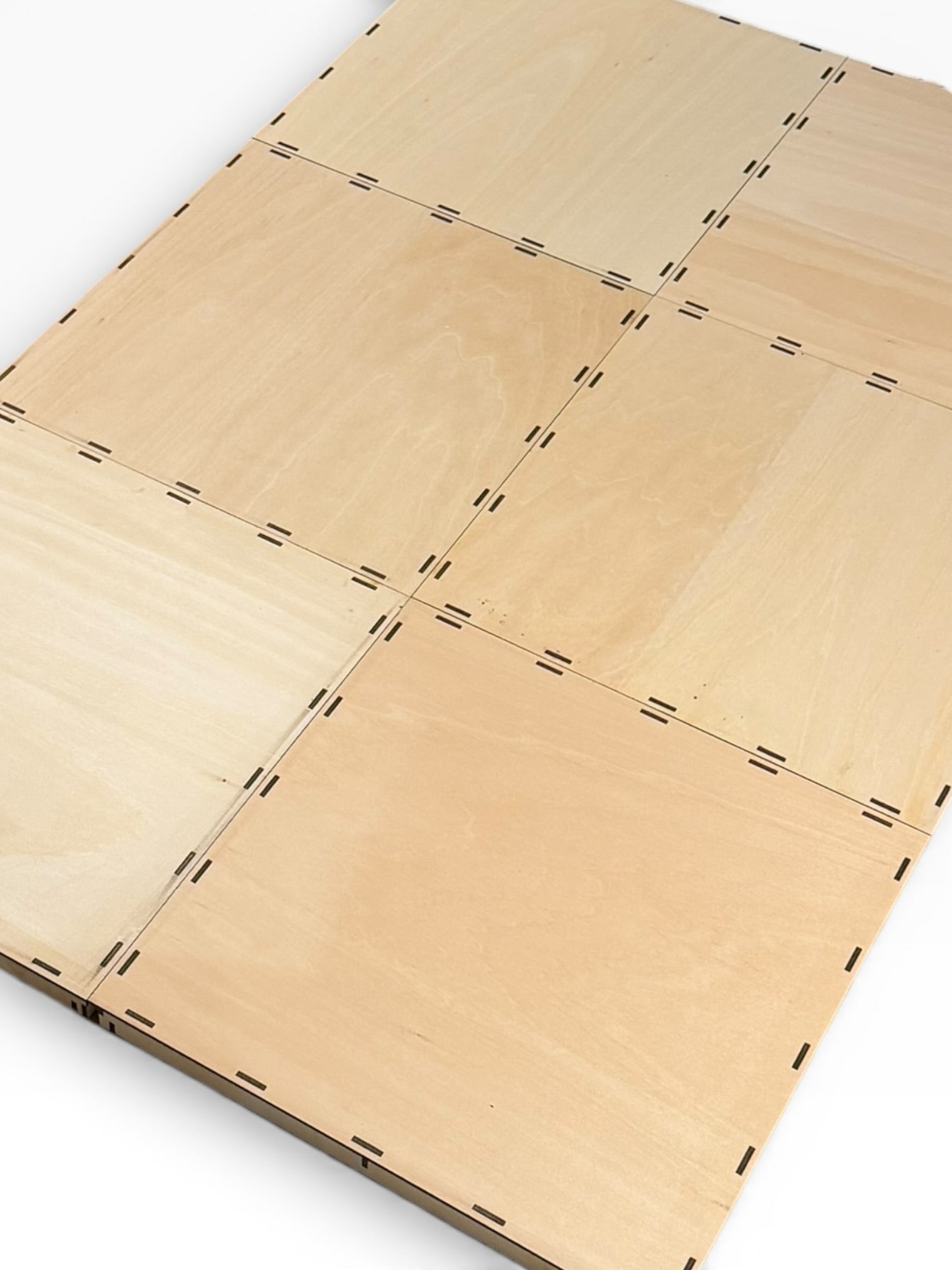

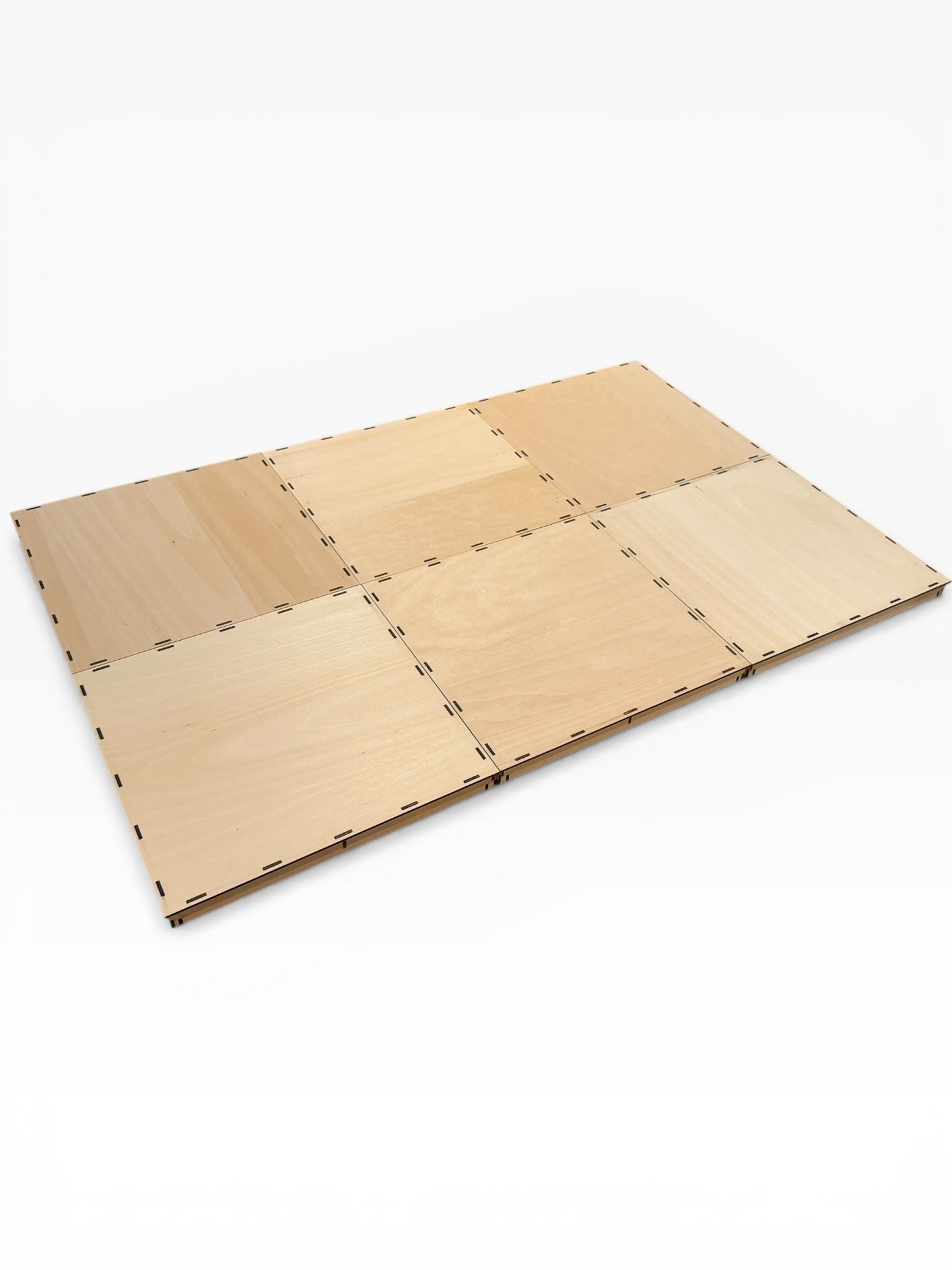

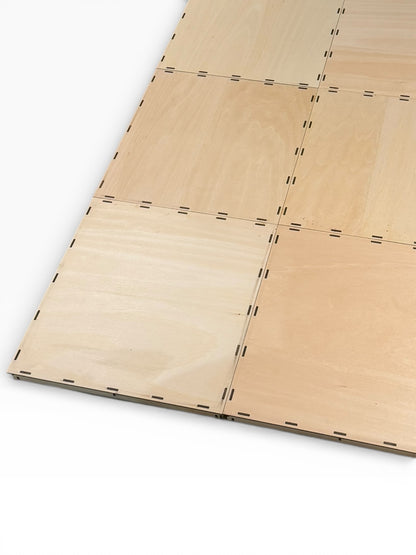

Example layouts:

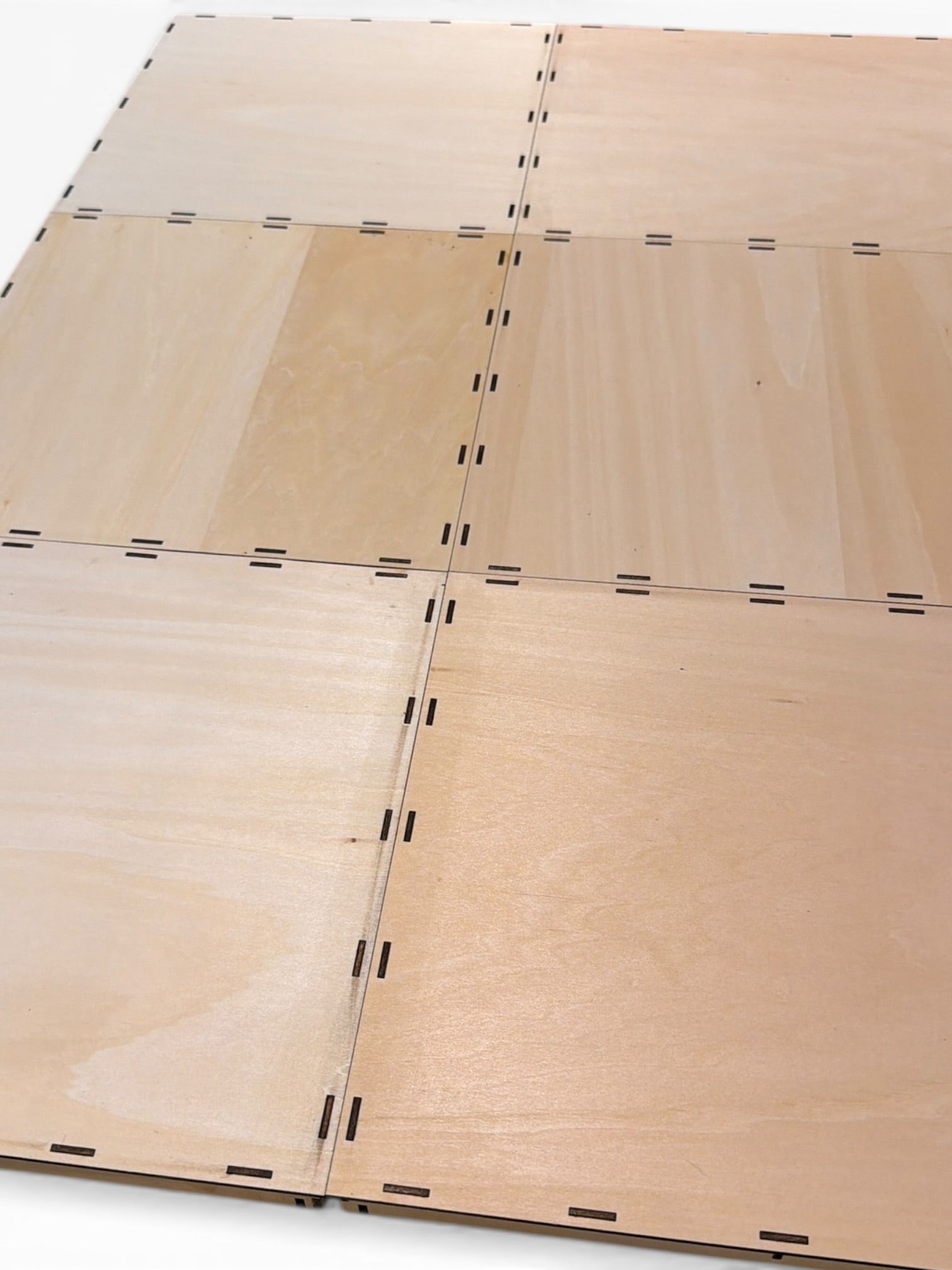

• 4 tiles → small skirmish board

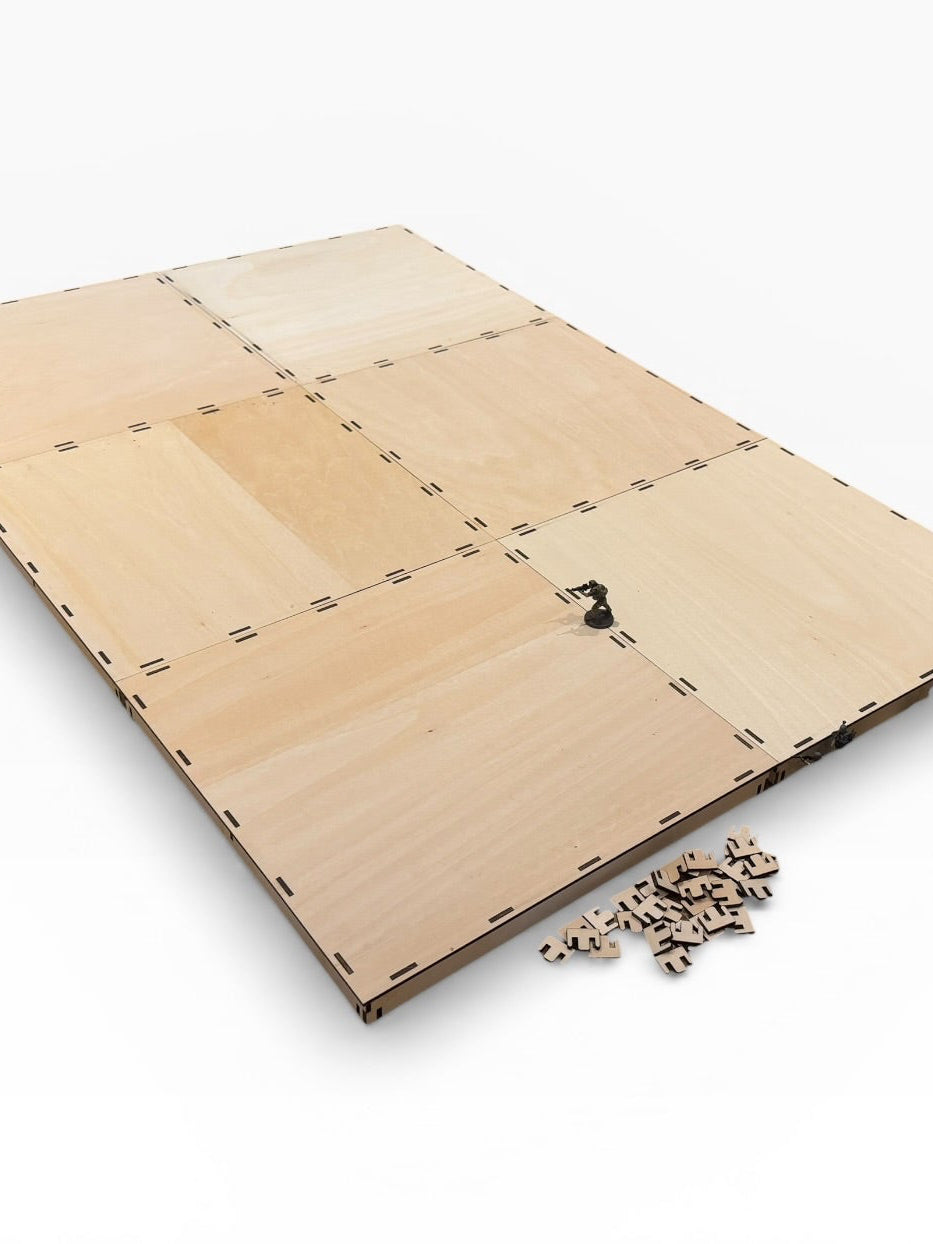

• 6 tiles → medium table

• Expand to any size you wish

---

Important Notes

• Digital download only
• A laser cutter is required
• Measure your plywood and choose the closest thickness version
• Always test a single connector before cutting multiple tiles
• Do not scale the files in your laser software

---

Support

If you encounter any issues, please message me and I’ll help you get a working result.
